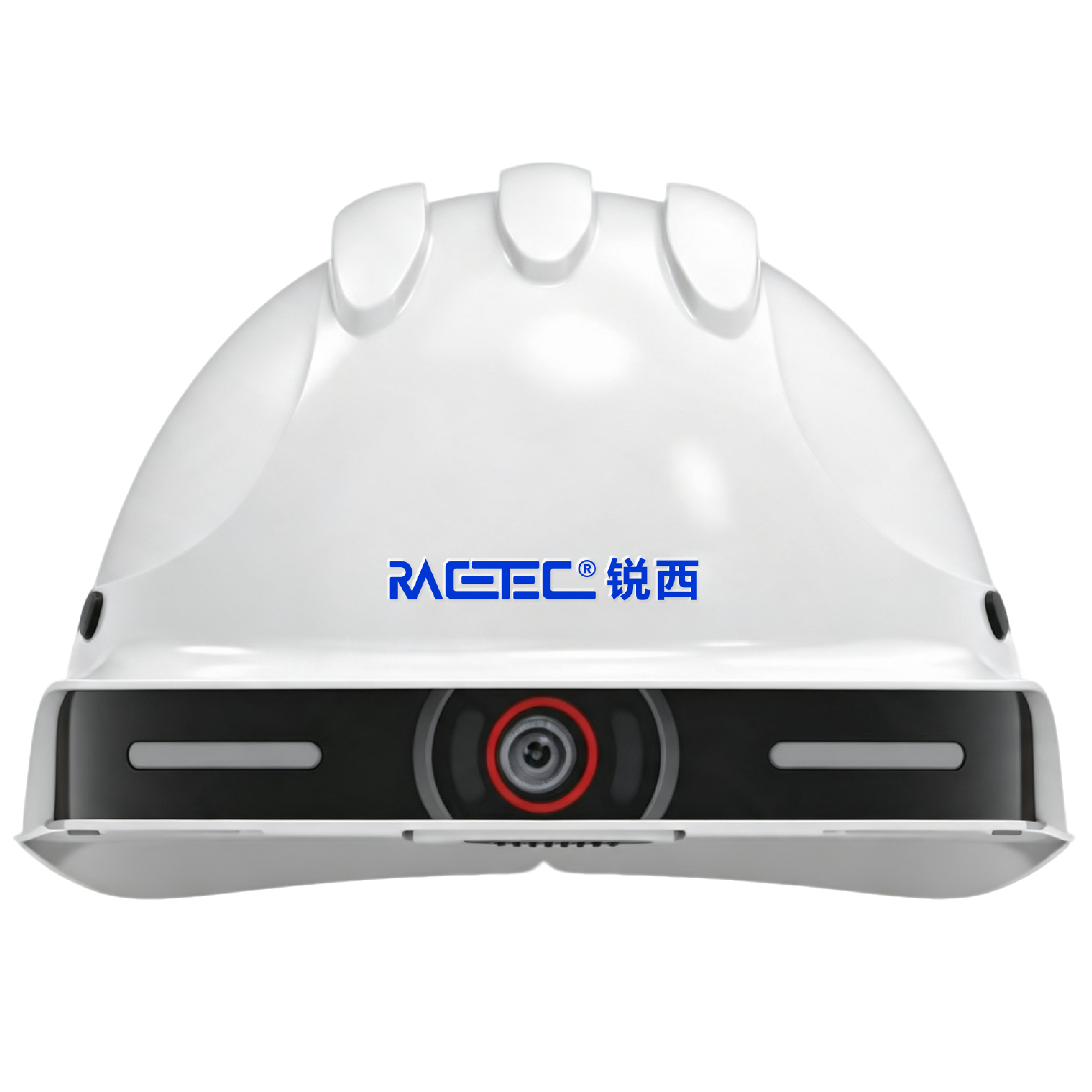

RACE-RUISHI Ultra (Flagship Edition)

Precise Positioning · HD Monitoring · Active Alarm · Long Battery Life · Expandable

Book a Flagship Demo Download the Flagship White Paper

Product Positioning

An all-in-one intelligent wearable terminal built for high-risk scenarios. Integrating Beidou + GPS + RTK + UWB quadruple fusion positioning, full-scenario proactive safety alerts, and dual-battery hot-swap capability, it delivers a one-stop closed-loop solution for high-risk industries.

Addressing Pain Points: Multi-Dimensional Core Value

Turn every hard hat into an on-site sentry that understands alerts, communicates, and makes decisions

Enterprise Safety Manager

Core Needs: Fulfill safety responsibilities / Reduce accident rates

Solution Value: Seven-scenario proactive alert coverage (hard hat removal / impact / fall / inactivity / proximity to power / working at height / temperature) with no risk blind spots; terminal + platform dual-end synchronized alerts, no manual monitoring required; positioning accuracy within 50 cm, solving underground/indoor positioning blind spots, enabling precise personnel location locking and rapid rescue response after incidents.

Explore More

Project Manager

Core Needs: Improved dispatch efficiency / Remote monitoring

Solution Value: 120° ultra-wide angle + night vision + image stabilization HD video streaming; first-person view covers a wider work field than conventional cameras; Beidou + GPS + RTK + UWB quadruple fusion positioning maintains signal in complex environments such as chemical plants, towers, and tunnels; dual-battery hot-swap ensures 24/7 online monitoring without interrupting operations for battery replacement.

Explore More

Government / Industrial Park Safety Supervision Authority

Core Needs: Full-process traceability / Enforcement evidence

Solution Value: Dual TF card hardware encryption + NARI State Grid encrypted IC, with data storage security meeting power/military standards; work trajectories, audio/video, and full-scenario alert data are stored on-chain, providing a complete tamper-proof electronic evidence chain.

Explore More

Technical Procurement Decision-Maker

Core Needs: Open system / Avoid information silos

Solution Value: GB/T28181 + standard APIs support private deployment, easily integrating with safety management/ERP systems for seamless integration and effective protection of customer investment.

Explore More

Hardware-software Synerg elevates the hard hat from "passive protection" to "proactive intelligence"

Full-Spectrum Perception Layer (Industrial-Grade IoT Fusion)

Multimodal Environmental Perception: Built-in gas sensors (CO, H₂S, CH₄, etc.), temperature/humidity sensors, gyroscope, and high-precision positioning chip; real-time collection of air, posture, and temperature/humidity data; standard PIN interface supports external modules such as gas detection.

High-Precision Fusion Positioning: Beidou + GPS + RTK + UWB quadruple fusion positioning; seamless switching between outdoor open areas and underground, indoor, and tower environments; positioning accuracy within 50 cm, no additional options required.

Bidirectional Audio & Video Streaming: 120° ultra-wide angle + night vision + image stabilization camera, clear even in low light and vibration; AI noise-canceling microphone for uninterrupted calls in noisy environments; multi-party video calls and centralized backend monitoring.

Edge AI Decision Layer (Millisecond-Level Proactive Alerts)

Behavior & Posture Recognition: AI analyzes seven risk types in real time (hard hat removal, impact, fall, inactivity, working at height, proximity to power, temperature); local audio-visual alarms triggered on the terminal and synchronized to the management backend, with dual-end simultaneous alerting.

Environmental Risk Prediction: Automatic alerts for abnormal temperature; instant warnings when approaching high-voltage equipment via proximity sensing; customizable alert thresholds for flexible adaptation to different work scenarios.

Workflow Compliance Verification: Based on geofencing and Beidou + GPS + RTK + UWB quadruple fusion positioning trajectory, AI automatically determines whether workers enter hazardous areas or deviate from work scope; instant on-site voice prompts and synchronized platform records.

Flagship Exclusive，Five Superiorities

All product models comply with the GB 2811-2019 national safety helmet standard and hold CCC mandatory certification. The shell is made of high-strength ABS engineering plastic, with IP66 dustproof and waterproof rating (alcohol disinfection supported), suitable for extreme environments in mining, chemical, construction, and other industries. Supports Logo customization, software and hardware custom development, and system integration.

Full-Spectrum High-Precision Positioning:Integrated Beidou + GPS + RTK + UWB quadruple fusion positioning technology, with accuracy ≤ 50 cm, enabling seamless switching between indoor and outdoor complex environments.

Full-Scenario Proactive Safety Alerts: Seven-scenario alerts: hard hat removal, impact, fall, inactivity, proximity to power, working at height, temperature.

Hot-Swap Battery: 5600mAh removable battery, 8-10 hours recording runtime; built-in backup battery ensures 24/7 connectivity.

Enhanced Multi-Mode Communication: 4G + WiFi + Bluetooth 5.0 for more stable connectivity.

High Expandability: PIN interface supports external modules for customization.

Spec Comparison · Flagship vs Standard/ Premium

Specifications

Core Processor

Imaging System

Positioning

Battery

Expansion Interface

Storage

RACE-RUIDUN S1 (Standard Edition)

industrial-grade control chip

No external camera

GPS + Beidou dual-mode positioning

3000mAh (built-in polymer battery)

None

4MB RAM + 8MB ROM (fixed)

RACE-RUISHI Ultra (Flagship Edition)

12nm octa-core 2.0GHz high-performance chip

4MP (interpolated to 36MP) 120° ultra-wide angle

Quadruple fusion positioning (Beidou + GPS + RTK + UWB standard) accuracy ≤ 50cm

5600mAh + 110mAh dual battery

Standard PIN interface supports external modules

2GB + 32GB (up to 128GB expandable)

RACE-RUISHI X1 (Premium Edition)

MT8768 octa-core 2.3GHz

21MP main camera / 1080P recording

RTK centimeter-level / UWB precise indoor positioning

5000mAh (removable / hot-swappable)

None

4GB RAM + 64GB ROM (large storage)

Typical Scenarios

Smart Mining

Industry Pain Points：Complex underground environment, difficult personnel positioning, slow emergency rescue

Core Advantages：Beidou + GPS + RTK + UWB quadruple fusion positioning for centimeter-level tracking; gas sensors monitor methane/CO; fall alerts + one-click SOS

Proven Results：Reduced emergency rescue response time, achieving "person-machine-environment" interlocking

Smart Port

Industry Pain Points：Open work areas, high equipment/personnel mobility, regulatory blind spots

Core Advantages：120° ultra-wide angle + electronic image stabilization panoramic monitoring; night vision mode ensures clear visibility during nighttime operations

Proven Results：Improved human-machine collaboration safety and nighttime operation efficiency

Railway Industry

Industry Pain Points：Long route spans, dispersed personnel, many signal blind spots

Core Advantages：Beidou + GPS + RTK + UWB quadruple fusion positioning remains accurate in long-route signal blind spots; enhanced multi-mode communication (4G + WiFi + Bluetooth 5.0) ensures stable data transmission from remote sections

Proven Results：Worker emergency response reaches minute-level

Petrochemical & Chemical

Industry Pain Points：Flammable and explosive production environment, high risk of toxic gas leaks

Core Advantages：Ex ib IIC T4 explosion-proof hardware design, integrated gas detection and high-temperature alarms; supports offline data caching, recording key data even when disconnected

Proven Results：Full-process digital inspection, with early warning of pipeline leaks

Smart Construction Site

Industry Pain Points：Dense personnel, difficult management, frequent unsafe operations

Core Advantages：120° ultra-wide angle panoramic monitoring covers larger work areas; seven-scenario alerts comprehensively detect unsafe operations and safety risks

Proven Results：Significant reduction in worker unsafe operations, progressing toward the "zero serious injury" goal

Power Inspection

Industry Pain Points：Dangerous high-voltage environment, high electric shock risk, scarce expert resources

Core Advantages：Automatic proximity-to-power alarms when approaching high-voltage equipment; remote experts provide real-time video guidance for troubleshooting

Proven Results：Significant reduction in worker electric shock risk
