Hazardous Material Escort Robot
RACE-RUISHI X1 (Premium Edition)
Precise Positioning · HD Video · Environmental Perception · AI Voice
Product Positioning
An intelligent wearable terminal designed for the energy, chemical, and smart mining industries, integrating an AI voice assistant, HD video collaboration, live-line proximity warning, and gas detection — delivering an integrated collaborative operations solution for high-risk industries.
Addressing Pain Points: Multi-Dimensional Core Value
Turn every hard hat into an on-site sentry that understands alerts, communicates, and makes decisions
Enterprise Safety Manager
01
Core Needs: Fulfill safety responsibilities / Reduce accident rates
Solution Value: RTK + UWB precise positioning tracks personnel locations in real time, enabling timely intervention in unsafe operations; shifting from post-incident accountability to proactive prevention, reducing accident rates.
Project Manager
02
Core Needs: Improved dispatch efficiency / Remote monitoring
Solution Value: 21MP first-person HD video streaming enables precise on-site command even when off-site; vital sign monitoring connects to smart wristbands, 24/7 monitoring of heart rate and body temperature, detecting physical abnormalities in time and reducing worker fatigue risk.
Government / Industrial Park Safety Regulatory Authority
03
Core Needs: Full-process traceability / Enforcement evidence
Solution Value: Dual TF card hardware encryption + NARI State Grid encrypted IC, with data storage security meeting power/military standards; work trajectories, audio/video, and full-scenario alert data are stored on-chain, providing a complete tamper-proof electronic evidence chain.
Technical Procurement Decision-Maker
04
Core Needs: Open system / Avoid information silos
Solution Value: GB/T28181 + standard APIs support private deployment, easily integrating with safety management/ERP systems for seamless integration and effective protection of customer investment.
Hardware-software integration
elevates the hard hat from "passive protection" to "proactive intelligence"
Full-Spectrum Perception Layer (Industrial-Grade IoT Fusion)
Multimodal Environmental Perception: Built-in gas sensors (CO, H₂S, CH₄, etc.), temperature/humidity sensors, gyroscope, and high-precision positioning chip; real-time collection of air, posture, and temperature/humidity data.
High-Precision Fusion Positioning: RTK centimeter-level outdoor positioning / UWB precise indoor positioning dual-mode fusion; centimeter-level accuracy in open outdoor environments, precise tracking in indoor/underground environments via UWB base stations, effectively solving the "signal loss indoors" positioning blind spot.
Bidirectional Audio & Video Streaming: 21MP HD image-stabilized camera + first-person real-time live streaming, making remote experts feel as if they are on-site; AI noise-canceling microphone for uninterrupted calls in noisy environments.
Edge AI Decision Layer (Millisecond-Level Proactive Alerts)
Behavior & Posture Recognition: 21MP HD camera captures on-site footage in real time; AI automatically identifies unsafe behaviors and anomalies such as lingering in hazardous areas.
Environmental Risk Prediction: Automatic alerts for abnormal temperature; instant warnings when approaching high-voltage equipment via proximity sensing; customizable alert thresholds for flexible adaptation to different work scenarios.
Workflow Compliance Verification: Based on geofencing and RTK + UWB positioning trajectory, AI automatically determines whether workers enter hazardous areas or deviate from work scope; instant on-site voice prompts and synchronized platform records.
Deep Intelligence: Four Major Upgrades
The full product line complies with the national safety helmet standard GB 2811-2019 and holds China Compulsory Certification (CCC). The shell is made of high-strength ABS engineering plastic with IP66-rated dust and water resistance (alcohol-disinfectable), built for extreme environments such as mining, chemical, and construction sites. Custom logos, customized hardware/software development, and system integration are supported.
AI Voice Assistant ("Hello Xiao'an"): Supports 30+ voice commands, freeing hands to focus on work; no need to divert attention to operate the device during high-risk operations, significantly improving work safety.
HD Video & Remote Collaboration: 21MP camera, 1080P recording, first-person real-time live streaming, enabling experts to remotely "be on-site" for troubleshooting.
Environmental Perception & Proactive Alerts: Supports proximity-to-power alerts and gas detection (optional); immediate detection and proactive alarming in hazardous environments, shifting from passive protection to active defense.
High-Precision Positioning Enhancement: RTK centimeter-level outdoor positioning / UWB precise indoor positioning, achieving accurate tracking in complex indoor/outdoor environments, solving the industry pain point of "signal loss indoors."
Spec Comparison · Flagship vs Standard/ Premium
Specifications
Core Processor
Imaging System
Positioning
Battery
Expansion Interface
Storage
RACE-RUIDUN S1 (Standard Edition)
4GM1 industrial-grade control chip
No external camera
GPS + Beidou dual-mode positioning
3000mAh (built-in polymer battery)
None
4MB RAM + 8MB ROM (fixed)
RACE-RUISHI X1 (Premium Edition)
MT8768 octa-core 2.3GHz
21MP main camera / 1080P recording
RTK centimeter-level / UWB precise indoor positioning
5000mAh (removable / hot-swappable)
None
4GB RAM + 64GB ROM (large storage)
RACE-RUISHI Ultra (Flagship Edition)
12nm octa-core 2.0GHz high-performance chip
4MP (interpolated to 36MP) 120° ultra-wide angle
Quadruple fusion positioning (Beidou + GPS + RTK + UWB standard) accuracy ≤ 50cm
5600mAh + 110mAh dual battery
Standard PIN interface supports external modules
2GB + 32GB (up to 128GB expandable)
Typical Scenarios

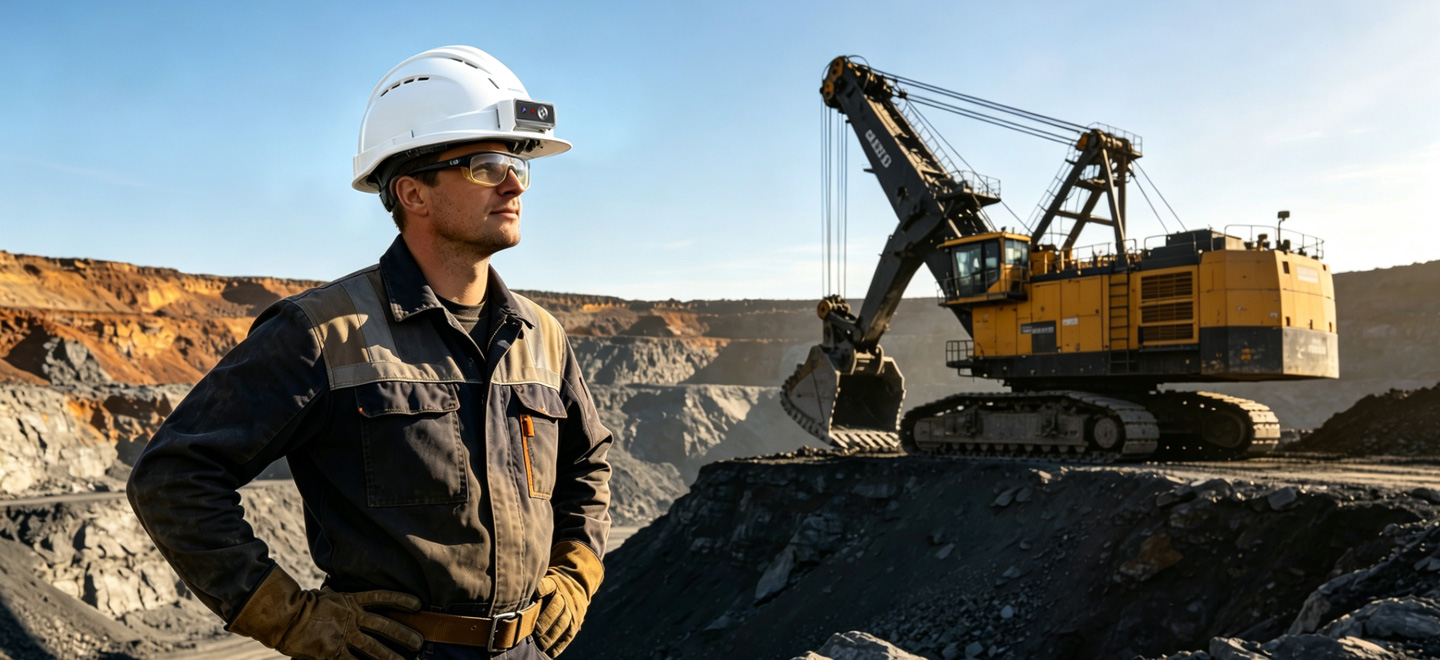

Smart Mining
Industry Pain Points：Complex underground environment, difficult personnel positioning, slow emergency rescue
Core Advantages：RTK + UWB fusion positioning for centimeter-level tracking; gas sensors monitor methane/CO; fall alerts + one-click SOS
Proven Results：Reduced emergency rescue response time, achieving "person-machine-environment" interlocking

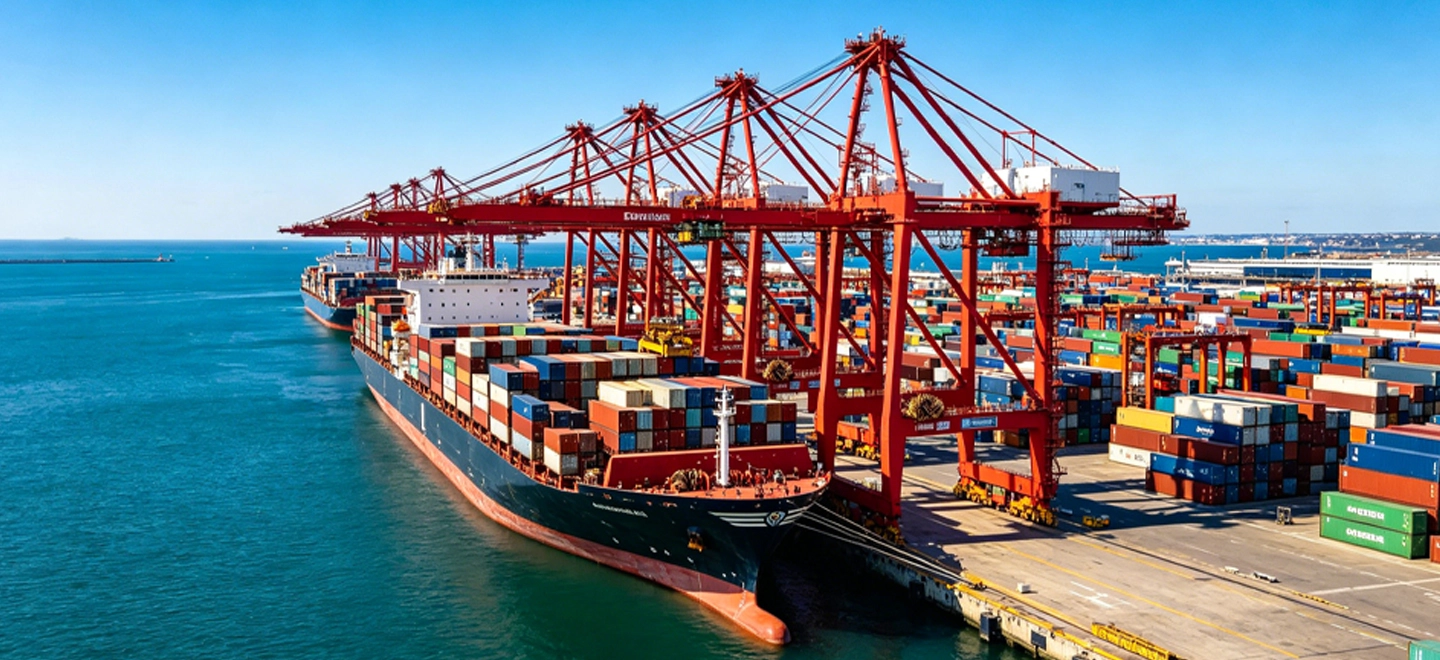

Smart Port
Industry Pain Points：Open work areas, high equipment/personnel mobility, regulatory blind spots
Core Advantages：RTK centimeter-level positioning for precise tracking in open areas; HD video real-time streaming for remote command; AI voice commands for rapid personnel dispatch
Proven Results：Centimeter-level personnel positioning accuracy; dispatch orders delivered instantly via voice
Railway Industry
Industry Pain Points：Long route spans, dispersed personnel, many signal blind spots
Core Advantages：RTK centimeter-level positioning / UWB precise indoor positioning; group intercom for efficient collaboration; one-click voice broadcast
Proven Results：Zero-latency group communication for line-side workers; dispatch orders reach all personnel in seconds via voice broadcast

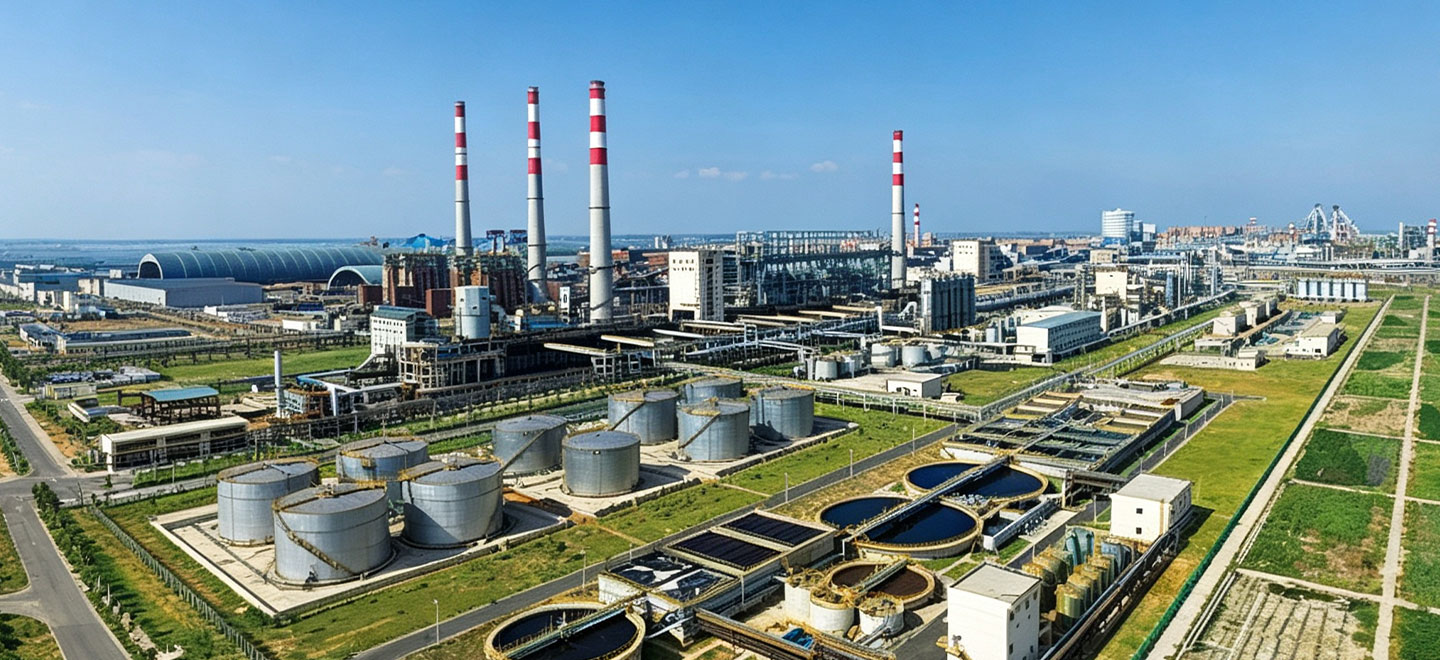

Petrochemical & Chemical
Industry Pain Points：Flammable and explosive production environment, high risk of toxic gas leaks
Core Advantages：Ex ib IIC T4 explosion-proof hardware design, integrated gas detection and high-temperature alarms; supports offline data caching, recording key data even when disconnected
Proven Results：Full-process digital inspection, with early warning of pipeline leaks

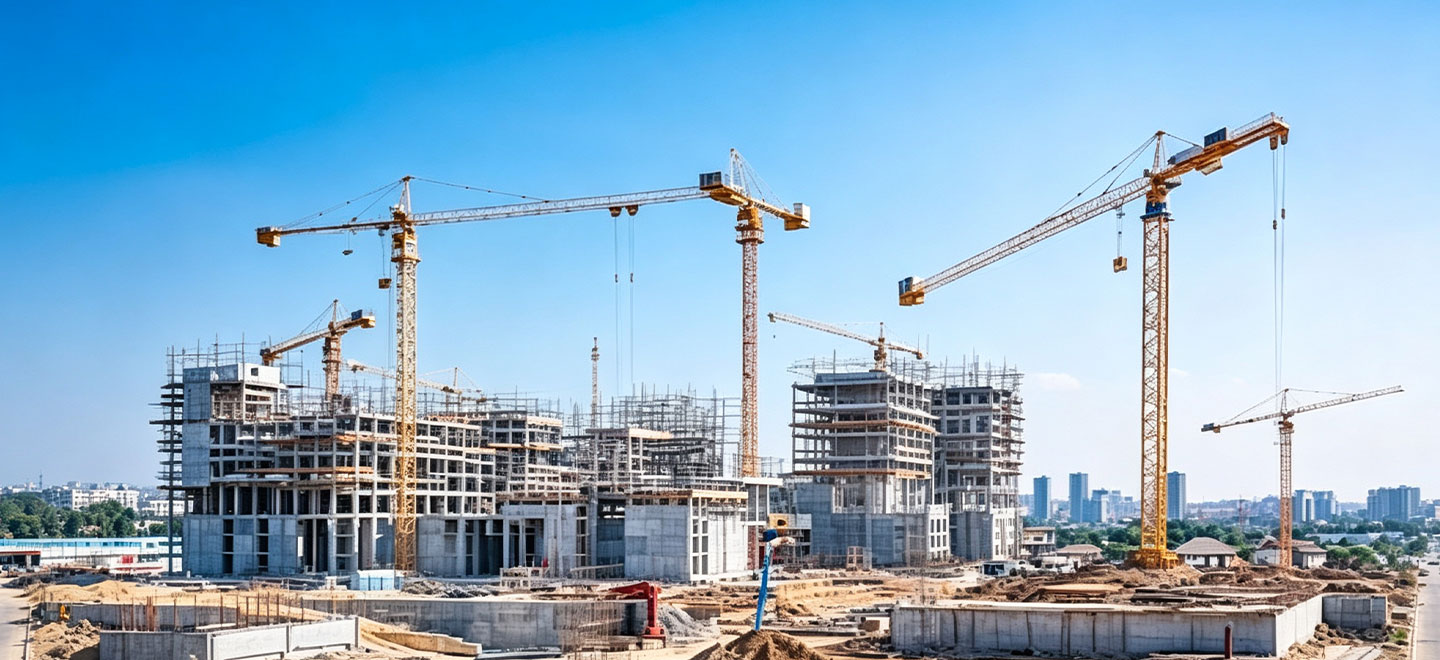

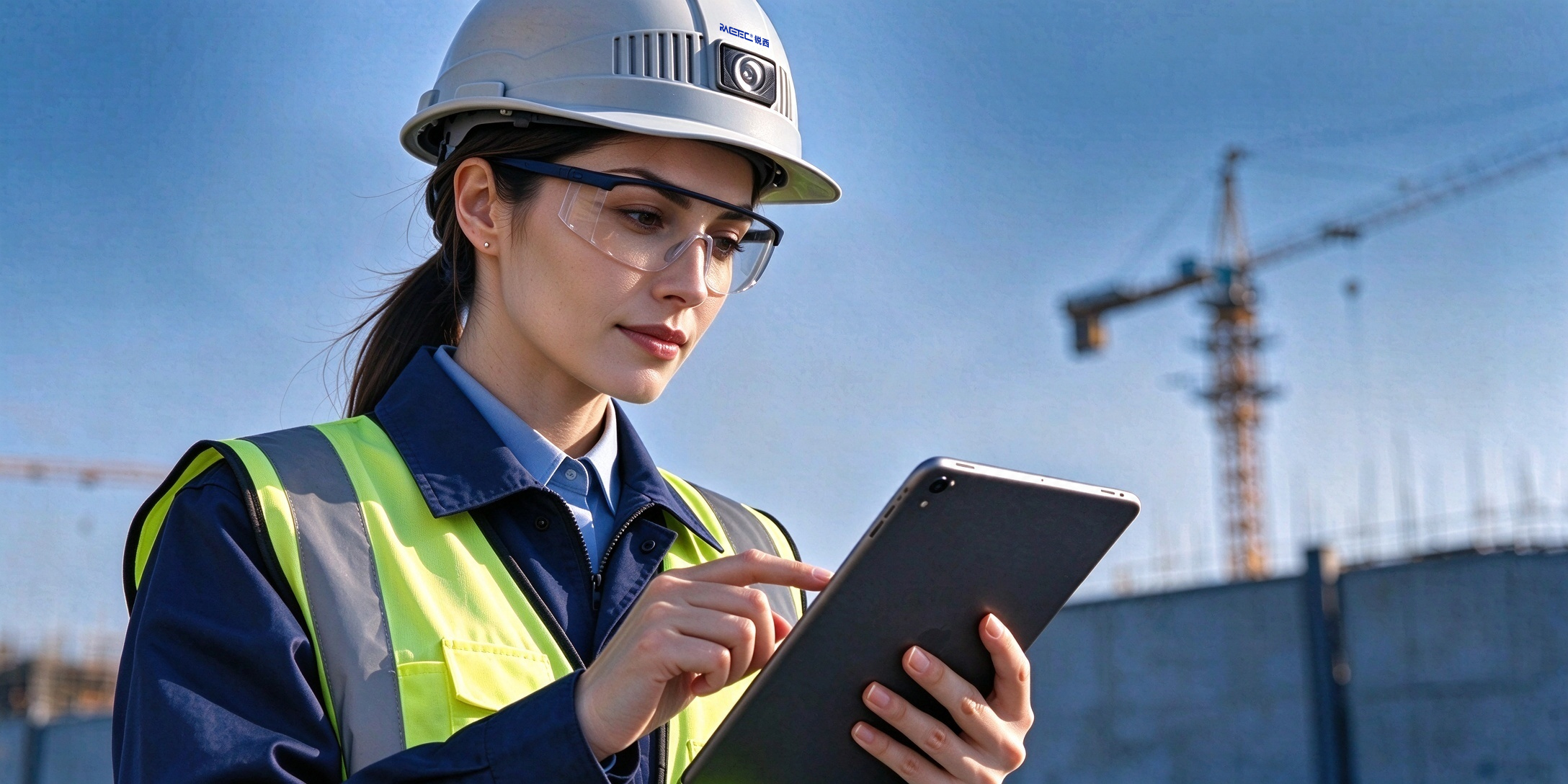

Smart Construction Site
Industry Pain Points：Dense personnel, difficult management, frequent unsafe operations
Core Advantages：21MP HD video real-time live streaming enables remote inspection from the backend
Proven Results：Significant reduction in worker unsafe operations, progressing toward the "zero serious injury" goal
Power Inspection
Industry Pain Points：Dangerous high-voltage environment, high electric shock risk, scarce expert resources
Core Advantages：Automatic proximity-to-power alarms when approaching high-voltage equipment; remote experts provide real-time video guidance for troubleshooting
Proven Results：Significant reduction in worker electric shock risk
Open & Win-Win
Join Us in Building the Future of Workplace Safety Intelligence
RACETEC provides not only smart hard hat hardware, but also "terminal + platform + O&M" full-stack service capabilities
Target Users
System integrators
large construction/energy enterprises
government emergency management departments
